SY-1 Syncussion DIY PCB KIT

Regular price $425.00

Shipping calculated at checkout.

THIS IS THE PCB ONLY KIT.  CASE SOLD SEPRATELY

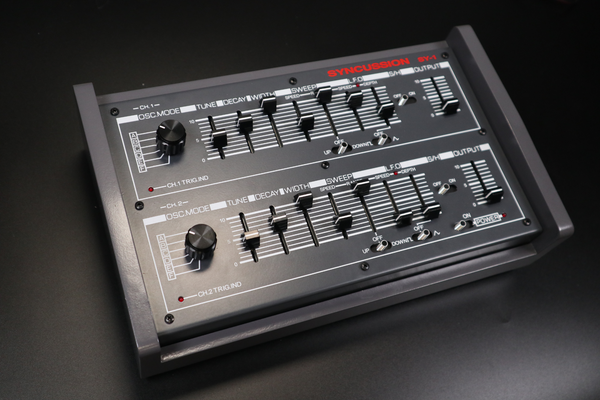

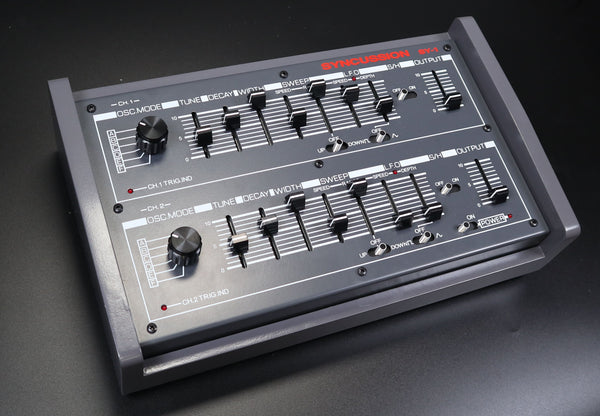

This is an EXACT 1:1 Replica of the Pearl SY-1 Syncussion.  Everything has been reversed engineered to give you the FULL SYNCUSSION DIY EXPERIENCE

Features:

  • Remanufactured PCBs from scans of production boards

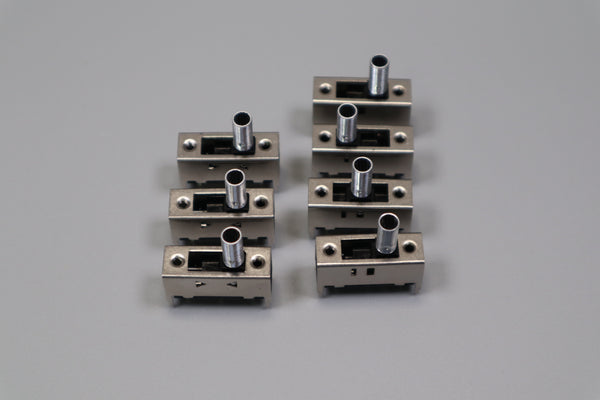

  • Remanufactured Slide switches
  • Uses original Mitsubishi dual NPN/PNP parts (Modern replacements will be available)
  • New production CNC cut MDF wood case (unfinished) or simple metal base (sold separately)

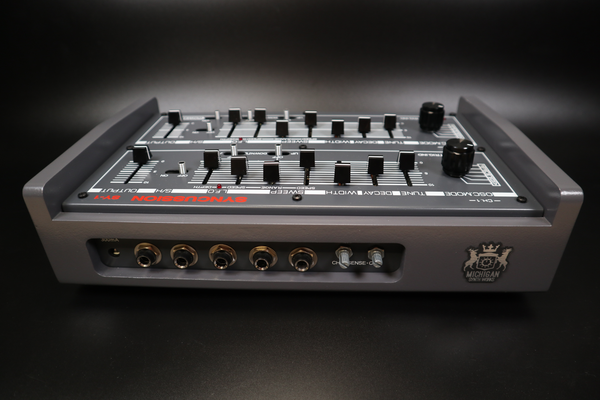

  • Original I/O board layout or Modernized I/O board which includes individual outs, Decay CV, per channel CV control with V/O trim
  • All new manufacture hardware (standoffs, risers, etc)

Kit Includes:

  • SY-M Mainboard PCB

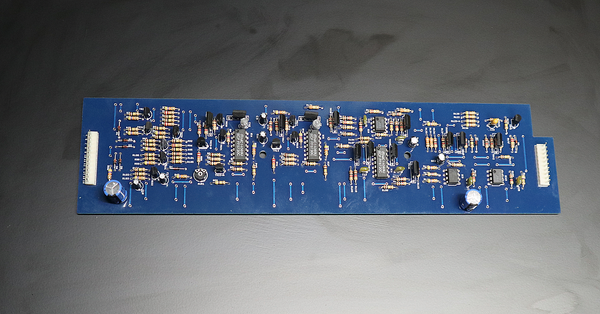

  • 2x SY1-S Voice Board PCBs
  • 2x SY1-R Riser PCBs
  • 1x SY1-J Classic Jack Board AND Modern Modified Jack Board with preinstalled SMD parts (you choose which to install, parts are the same)
  • Full Set of stamped and threaded standoffs (2 rails, 3 standoffs) with screws
  • Full set of 1/4" Phone jacks
  • Full set of Original JST Headers and sockets for the Riser Boards
  • Full Set (16x) potentiometer adapters with caps
  • Full Set of Slide switches
  • Full Set of SINGLE NPN/PNP Transistors (2sa1015, 2sc1815) + other harder to source parts (Listed on the bom with KIT in notes)
  • Full Set of DUAL NPN/PNP Transistors (2sc1583, 2sa798), modern equivalent parts on adapters with pins

THIS IS A PARTIAL KIT, REMAINDER OF PARTS MUST BE PURCHASED SEPARATELY

OFFICIAL BILL OF MATERIALS
