Gnot Synthesizer

Regular price $399.00

Shipping calculated at checkout.

PLEASE NOTE:  This is a custom order device, 2-3 week lead time for assembled units.

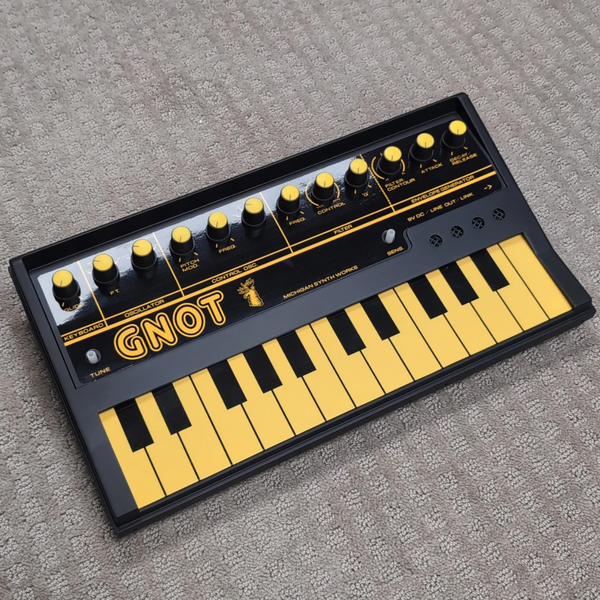

Gnot is a 1:1 recreation of the EDP Gnat Synthesizer.  It features digital oscillator, Low pass filter, LFO, and AD Envelope Generator.  It can be controlled via 25 key touch keyboard or EDP LINK 7 pin DIN.

DCO  Oscillator has 3 shapes: Square, Saw, and "Enhanced" as well as a noise source.

LFO  5 Shapes: Sine, Saw, Rev Saw, Square and Random

VCF  Resonant Low Pass with LFO or ENV modulation

Envelop Generator  Attack/Decay with Filter contour control

KEYBOARD  25 Key Touch with Glide

I/O  1/4" Mono Phone output, 9VDC (Tip Neg, 200 mA min, 2.1/5.5mm Barrel), DIN7 LINK

Currently the device is DC only

I do not offer a MIDI to LINK device at this time but will in the future.

1.4 Kg, 400x230x90mm

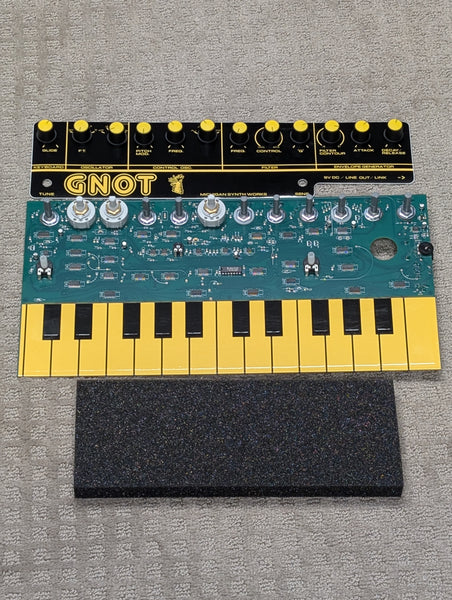

I am offering the device as built OR as a barebones version for people who would like to supply their own case.  The case is use is manufactured by JLC3DP and can be purchased painted in several colors.  These cases are expensive to import into the US so I will provide the files and instructions on how to order them for people who are not in the US and prefer to order themselves.
