PLEASE READ
There are a limited number of kits in stock. A second large batch has been ordered and will be ready to ship in 2-3 weeks so I am making those available to order now. Orders will fulfilled in the order received.
If you are interested in an assembled device click here

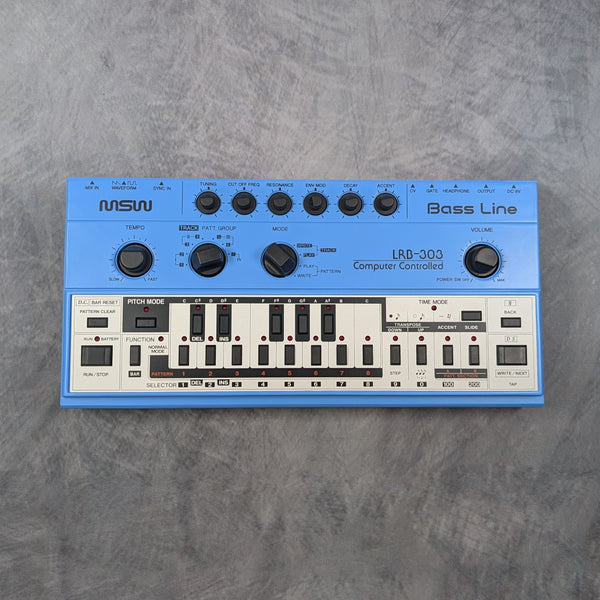

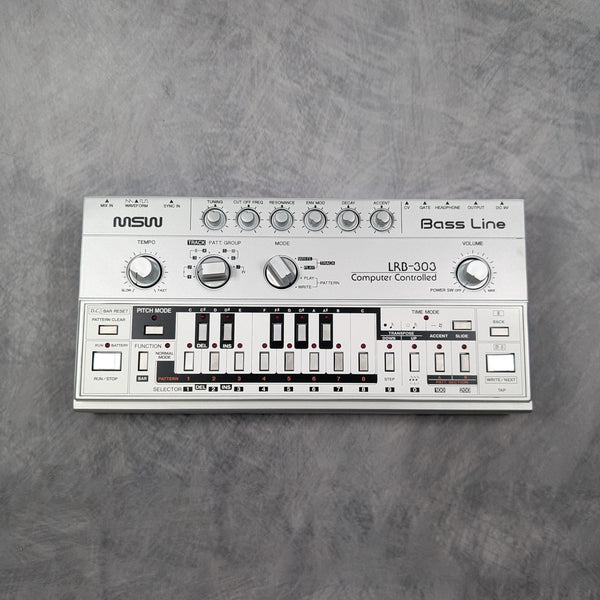

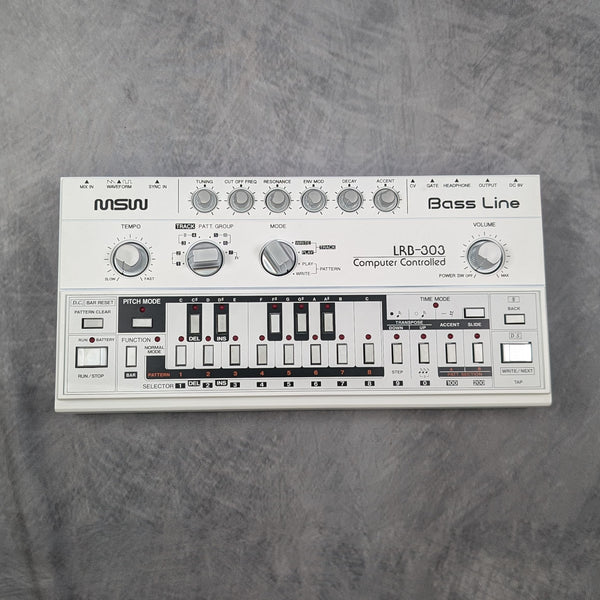

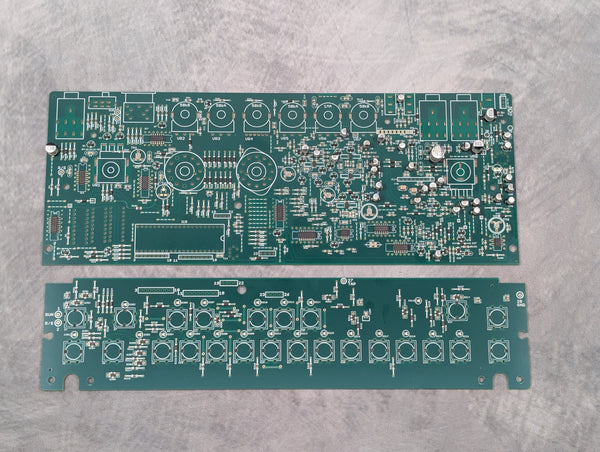

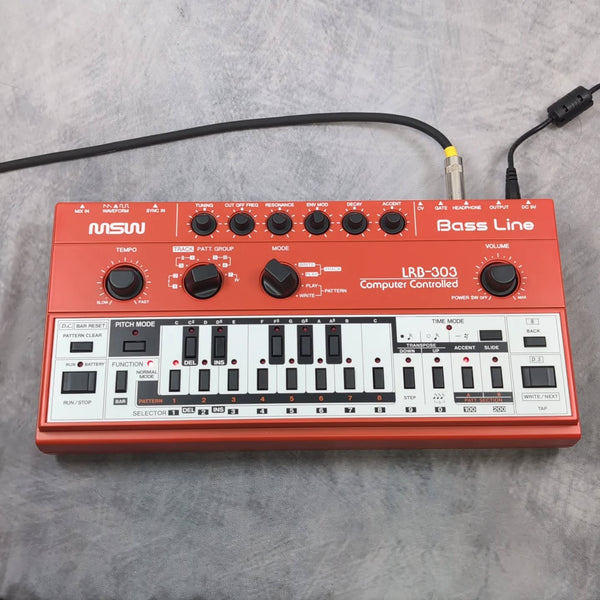

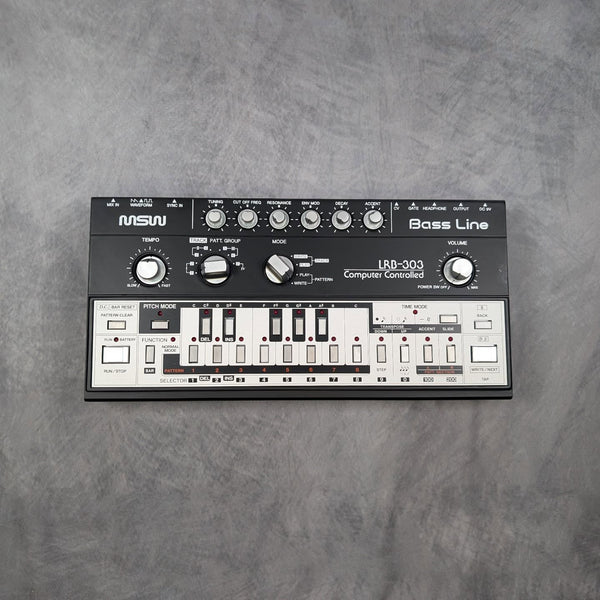

This a complete kit to build the LRB-303 synthesizer. This is NOT a beginner kit and some kit building skills are necessary. Boards are 4 layer FR4 ENIG plated and fully ROHS Compliant.
Tools Required:
Soldering Iron
Solder (ROHS SAC305 solder is used on the board)
Trimmer Adjustment Tool or Small Blade flat screw driver
Wire Strippers
BUILD GUIDE HERE (work in progress)
Build Support can be found on the Discord Channel
This kit includes:

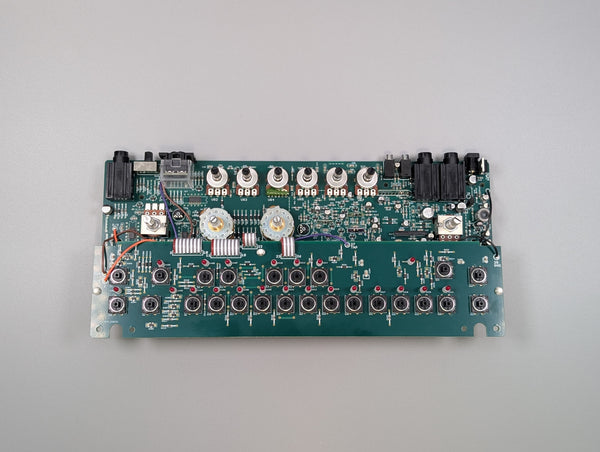

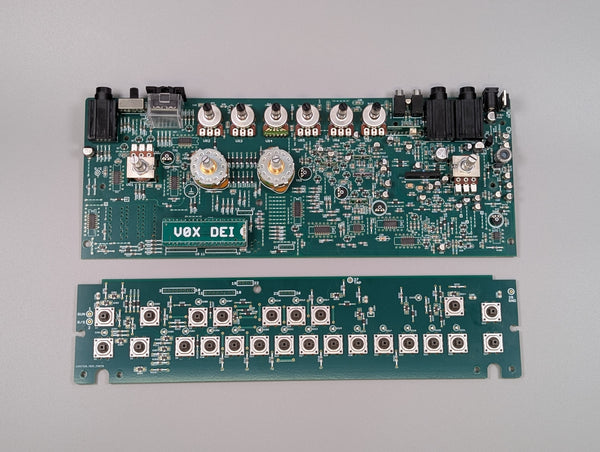

- SMD populated LRB-303 Mainboard
- SMD populated LRB-303 Switchboard
- Alps Tact switches, LEDS, Standoffs
- Switched DIN Socket
- Mainboard Through hole parts (8 Pots, 2 Brackets, Slide Switch, Audio, DC, CV Jacks)
- Precut and Tinned Ribbon Cables (4 Pcs)
- Alps Rotary Switches
- Precut interconnect wires
- OS-303 Processor with MIDI harness
- Dust Covers (4 pcs)
- Rub-on Case Art Sheet
- Metal Keyboard panel
NOT Included:
- Knobs/ Button Caps. Available from Krumptronics or Sound to Parts
- Case AVAILABLE HERE
Case Ordering Instructions:

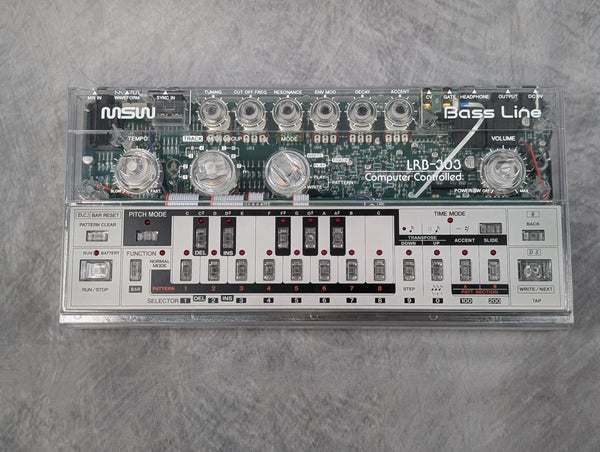

Any Material Can be used for the case however I recommend 9600 Resin with Spray Painted Surface finish. That is proven good. JLC will probably complain about wall thicknesses, tell them that you accept it as is. Clear is cool however the material does not have great dimensional stability so warping with clear is possible, YMMV. Make sure you select "Plastic Enclosure" as the application
